Model Information

Announcement Model

Announcement batch

Announcement chassis

Engine Model

Rated power(kw)

Displacement(L)

Engine Type

JJH5063XLJ

367

NJ1066EFC

F1CE8481K

125

2.998

Inline four-cylinder, turbocharged, intercooled, direct injection

Basic parameters

Length(mm)

5995

Fuel

diesel fuel

Emission standards

National VI

Width(mm)

2480

Fuel tank capacity (L)

100

Rated passenger capacity (persons)

4-6

Height(mm)

3250

Minimum turning diameter (m)

12.1

Maximum speed km/h

130

Height inside the car (mm)

1952

Front overhang/rear overhang(mm)

1002/1693

Wheelbase(mm)

3300

Curb weight(kg)

4500

Wheelbase front/rear(mm)

1725/1660

Maximum total mass (kg)

6000

Minimum ground clearance (mm)

175

Engine location

Pre

Approach angle/departure angle (°)

23/11

Chassis manufacturers

Nanjing Iveco Automobile Co., Ltd.

Vehicle Manufacturer Name

Jiangsu Jinghang Automobile Co., Ltd.

Version number: 2023-3-8 (A0)

project

Configuration Description

●Standard ○Optional/None

Shuangtuo Model

Remark

Chassis configuration

Body color

White front + white body

●

Suspension

Front independent suspension + rear three leaf springs

□

JINGHONG AIR BAG SUSPENSION

○

Front independent suspension + original rear air suspension

○

Original car generator

14V 150A+39V 65A dual generator

●

Assistance Systems

8-speed automatic transmission

●

Electric heated rearview mirror

●

Multi-function steering wheel + mobile phone interconnection and GPS navigation

●

Cruise control

●

Lane Departure Warning (LDWS)

●

Tire pressure monitoring

●

ESP

●

LCD navigation screen + reversing radar

●

Driver and co-driver chair type

Suspended driver's seat (rotatable passenger seat)

●

Basic Configuration

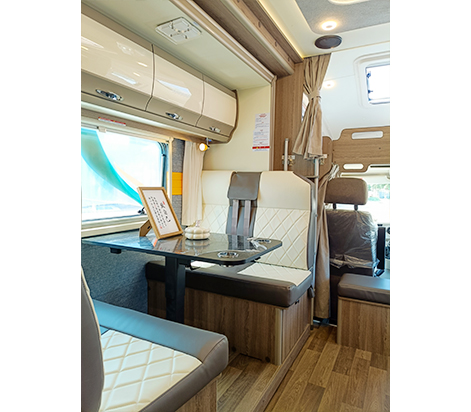

Interior systems

Cover the original driver and co-driver seats

●

Driving area floor mats

●

White PET sheet

●

Imported curved cabinet door

●

Calacatta Fireproof Board

●

Leather covered sponge for the seat

●

Composite mattress

●

Waterproof floor leather

●

Cab privacy curtain, forehead bed privacy curtain

●

Exterior system

Porsche forehead

●

Hollow acrylic sliding windows in the passenger area, hollow acrylic sliding windows in the bathroom, hollow acrylic sliding windows on both sides of the forehead bed

●

Passenger door for RV

●

Passenger door armrest

●

Three-port trailer bar

●

Manual RV sunroof with blackout curtain on front roof

●

Passenger door electric step

●

The driver and co-driver step on the door pedal

●

Outdoor manual automatic parking bracket

●

Side expansion awning

●

Rear expansion canopy

●

3.5m awning

●

Electronic control system

48V400AH high performance lithium battery

●

48V System

5kW charging inverter

48V driving power generation system

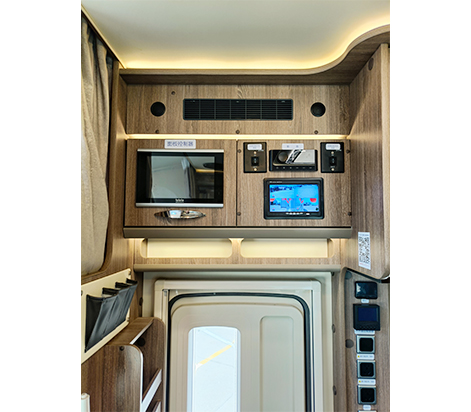

Touch button central water and electricity control system

●

1200W solar panel

●

Electrical system

Seven-hole AC new energy charging port

●

Streaming media rearview mirror, reversing image, four-way monitoring

●

Main power switch, circuit protection device, USB socket, 12V socket, 220V socket

●

In-car ceiling lighting, reading lights, local ambient lights, and lighting fixtures are controlled in different areas

●

Awning light strip

●

Post-expansion organization

●

Side expansion mechanism

●

15m new energy charging cable

●

Warm air and hot water system

25L Electric Water Heater

●

Independent fuel heater

●

1.5p inverter central air conditioner

●

Bathroom side exhaust fan

●

Living facilities

32-inch Xiaomi TV

●

2000W induction cooker (AC220V)

●

Jinghang special faucet

●

RV wash basin

●

RV range hood

●

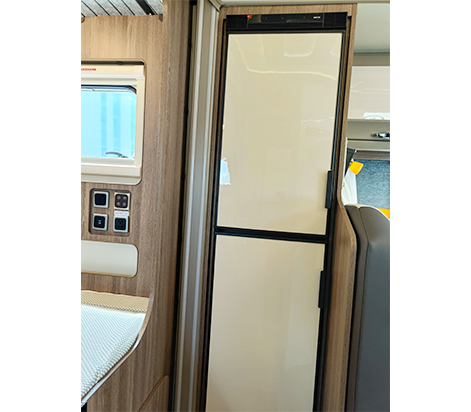

Double door DC refrigerator

●

Microwave oven

●

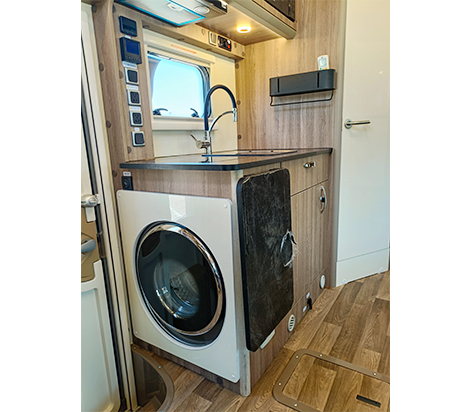

3kg washing machine with drying

●

Heat exchange fresh air system

○

Water Purifier

○

Outdoor Diesel Cooker

●

80L insulated clean water tank, 180L clean water tank

□

Three-leaf spring without through-bin

100L auxiliary water tank

□

80L insulated clean water tank, 190L clean water tank

○

Air suspension

130L Grey Water Tank

●

Gray water tank electric drain valve

●

Gravity water inlet with city water injection

●

Gravity water inlet with self-priming water inlet

●

Intelligent water suction pump with pressure tank

●

External 15m water supply pipe

●

External 5m sewage pipe

●

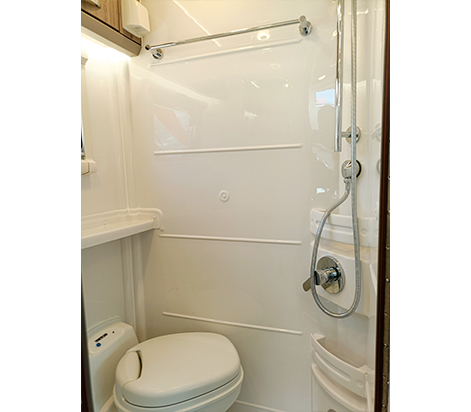

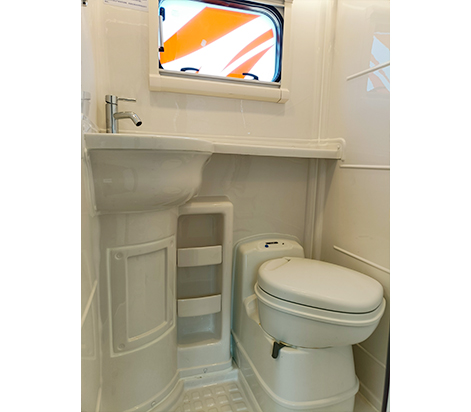

Blister toilet

Shower

●

Towel Bar

●

Bathroom mirror

●

Bathroom Curtain

●

Clothes drying rod

●

Warm air outlet

●

Security Configuration

1 x 12V LPG alarm

●

1 smoke alarm

●

1 2kg fire extinguisher

●

□ indicates the default configuration, which can be checked by √. ○ indicates an optional item, which can be checked by √. ● indicates a required item.
