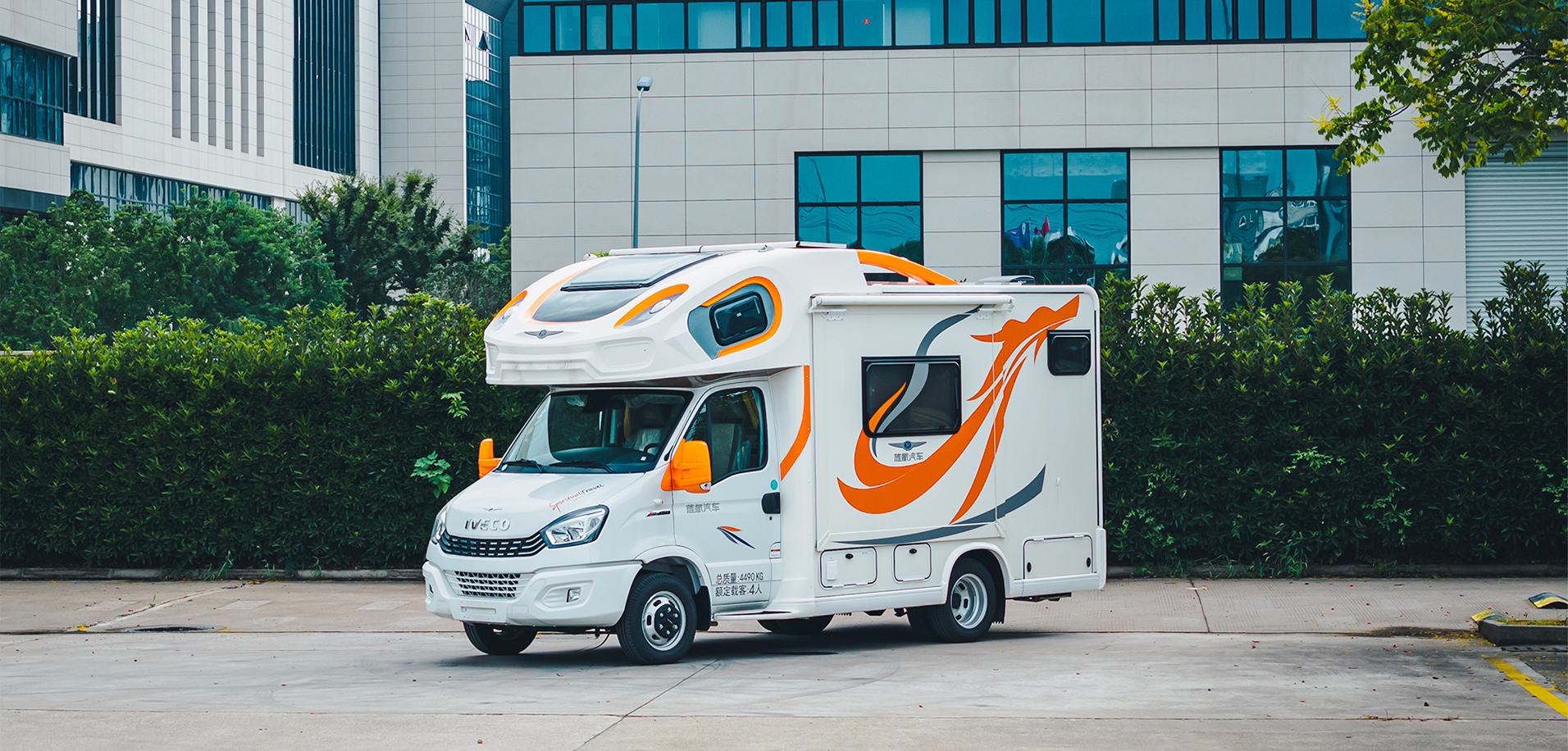

The smart large-space double-expansion RV inherits the family-style front face design. It is a great driving experience and a comfortable and pleasant ride. It is fast and stable, and the rhythm is under your control.
As life goes on, we will enjoy every wonderful moment together; the large and transparent space allows you to happily travel with your family, bringing an experience from the inside out.
|
Vehicle Model |
National VI Iveco AD02 automatic transmission - 4.5T |
category |
Type C Iveco WH-II-2022 | |
|
layout |
2022 Porsche head rear door single expansion, forehead sunroof, two side windows |
Number of passengers |
4-5 people | |
|
color |
Front |
□White | ||
|
car |
□White | |||
|
Plate |
□Light color #JH002+PET high gloss #WAS05-TC+WH gray #CONOGO large board |
| ||
|
Countertop Style |
□White Stone 5463SW□Calacatta 5460-16 | |||
|
leather |
□Y beige color matching leather | |||
|
Chassis parameters |
Displacement: 3.0T |
Dimensions |
5990*2310*3180 | |
|
Fuel tank: 100L |
Maximum power: 123KW |
Wheelbase: 3300mm | ||
|
Drive mode: 4X2 |
Transmission: 8AT |
Fuel type: diesel | ||
|
National VI emission standards |
Tire size: 195/75R16LT |
3 leaf springs | ||
|
Multi-function steering wheel |
Spare remote control key |
Driver and passenger suspension seats | ||
|
Dual generator (12V, 150A) (48V, 150A) |
Reversing radar |
| ||
|
Configuration |
standard | |||
|
Appearance |
Nanjing Iveco Class II Chassis |
Large storage compartment |
Paint-free aluminum sheet | |
|
FRP material forehead |
RV dedicated mains interface |
Special water inlet for RV (with self-priming) | ||
|
Outdoor parking support |
Outdoor pull-out stove |
Gravity water inlet + city water injection | ||
|
RV sliding window |
3.5m awning + LED light strip |
Handrails | ||
|
2.28m side extension canopy |
Outdoor 220V power socket |
| ||
|
Water tank |
Independent clean water tank 190L |
Antifreeze water tank 80L |
Gray water tank 60L | |
|
Fabric |
Fabric curtains + screens |
Card seat covering |
Comfortable and breathable special mattress | |
|

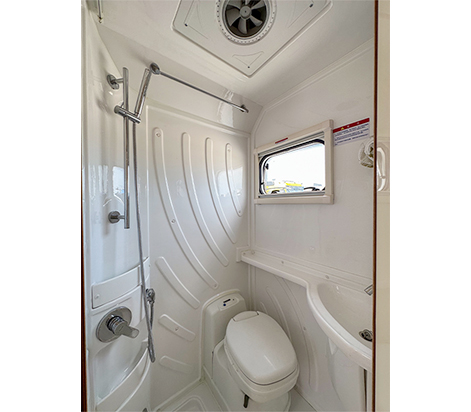

bathroom |
Bathroom Ventilator(3851) |
Bathroom wall light |
Toilet C200 | |
|
Shower |
Blister integrated toilet (leakage proof) |
Makeup mirror | ||
|
Audio and Video |
Forehead 32 inch TV |
Audio and video system |
| |
|

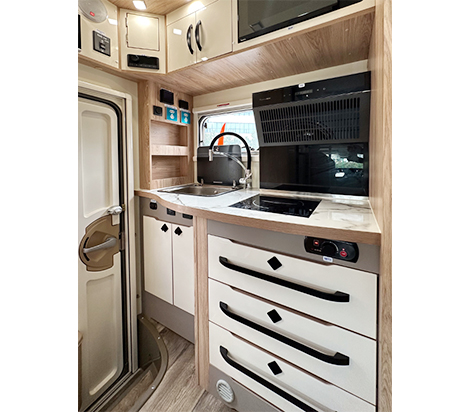

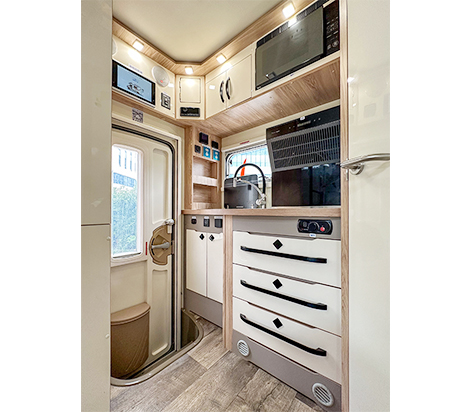

kitchen |
2000W Jinghang special induction cooker |
12V LPG alarm |
141L DC Refrigerator | |
|
Range hood |
Micro-wave oven |
Smoke alarm | ||
|
Electrical components |
48V300AH Lithium Battery |
48V central control system |
5000W Inverter | |
|
Dometic ceiling mounted air conditioner |
High speed ventilation fan (5100K) |
Navigation integrated machine (reversing image) | ||
|
Bedside reading lamp |
600W Solar Panel |
220V/12V power socket | ||
|
Passenger door for RV |
Water heater 25L |
Electric step board | ||
|
Ambient light strip |
USB interface |
External water pipe 10 meters | ||
|
Streaming |
External power cord 15 meters |
RV door child lock | ||
|
Four-way monitoring |
Vehicle wiring harness |
| ||
|
Imported water pump |
Washing machine 2.5KG |
Side expansion mechanism | ||
|
5kw fuel parking heater |
|
| ||
|
decorate |
Driver's seat cover with armrest |
Luxury furniture set |
Storage space compartment | |
|
Bed set |
Cockpit floor mats |
Waterproof floor leather |
Fireproof dining table | |
|

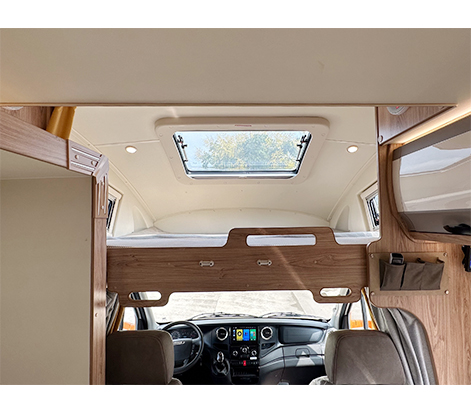

Double bed in the head cabin |
Side expansion sofa |
Side extension flip bed | ||
|
Remark |
Optional: □Projector | |||
